Small Slipform Curb Machine For Sale , Curb Slipformer Machine :

Working video in Youtube : http://youtu.be/o4wDt_oYkCw

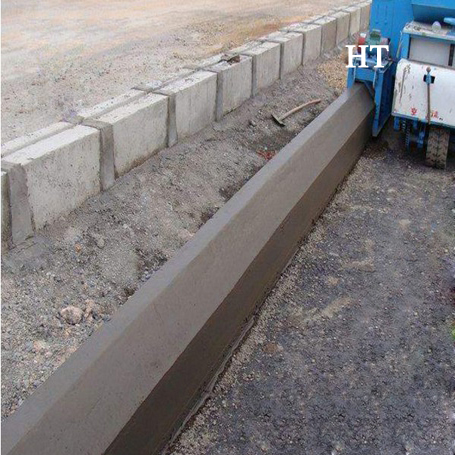

HT400 slipform curb machine is the special equipment for cement concrete road-building curbs.
This kind of curb slipformer machine can pave the curb range : Width ≤ 600mm,Height≤460mm.

Technical Parameter Of Curb Slipform Machine :

HT400

Specifications

Features

Curb size range

Width≤600mm,height≤460mm

Is widely applicable for curbs

Parameters

Of engine set

Fuel

diesel

Single-cylinder water-cooled diesel engine, simple and reliable

Power

8kw

Output voltage

380v,3 phases

Start-up mode

Electric start

Radiating way

Water cooling

Paving speed

1-4m/min

Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving

Curb Slipformer

Small Slipform Curb Machine For Sale

Contact us

  • Skype : andyvictoryy
  • Email : andy@htenma.com
  • Mobile(whatsapp, weichat) :
    0086 18638556116
  • Factory Address :
    Gebo Development Zone, Qinhuangdao City, Hebei, China
  • Office Address :
    1701, No. 27, Future International Bldg., Business Inner Ring East 3rd Rd, Zhengzhou City, Henan Province

Comparison Between Self-propulsion And Anti-push Type

All the models of our machine is Self-propulsion Type

1 Forming Intensity : anti-push type move forward by squeezing,low intensity.
Self-propulsion Type forms curb by high frequency vibration,
max exciting force 500kN

2 Working Speed : anti-push type squeezing one time and move forward one time,speed is low and can not be adjusted.

3 Embedded Curbs : anti-push type only can make curb on the road surface,can not pave the curb embedded down the road surface.

4 Curb Appearance : the mortar bucket of anti-push type is integrated with machine,easily blocked,
separated mortar bucket (self-propulsion type) can make the curb appearance more beautiful.

5 For Commercial Concrete (plastic concrete,fed by concrete truck directly),anti-push type is not suitable for this concrete.
