Slipform Kerb Machine For Sale , Kerb Slipform Machine HT600 :

Working video in Youtube : https://youtu.be/qyiya1M73xE

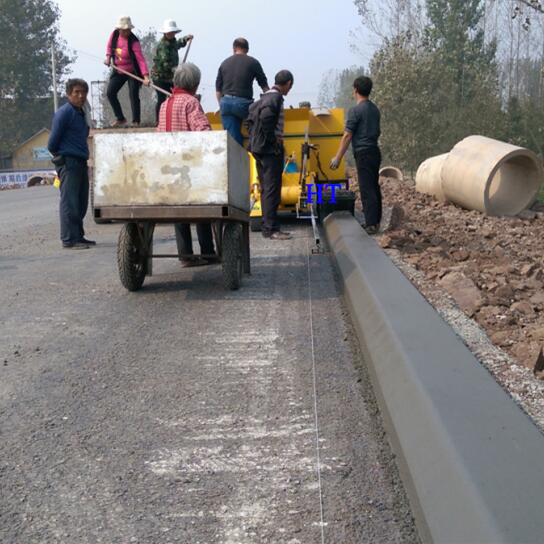

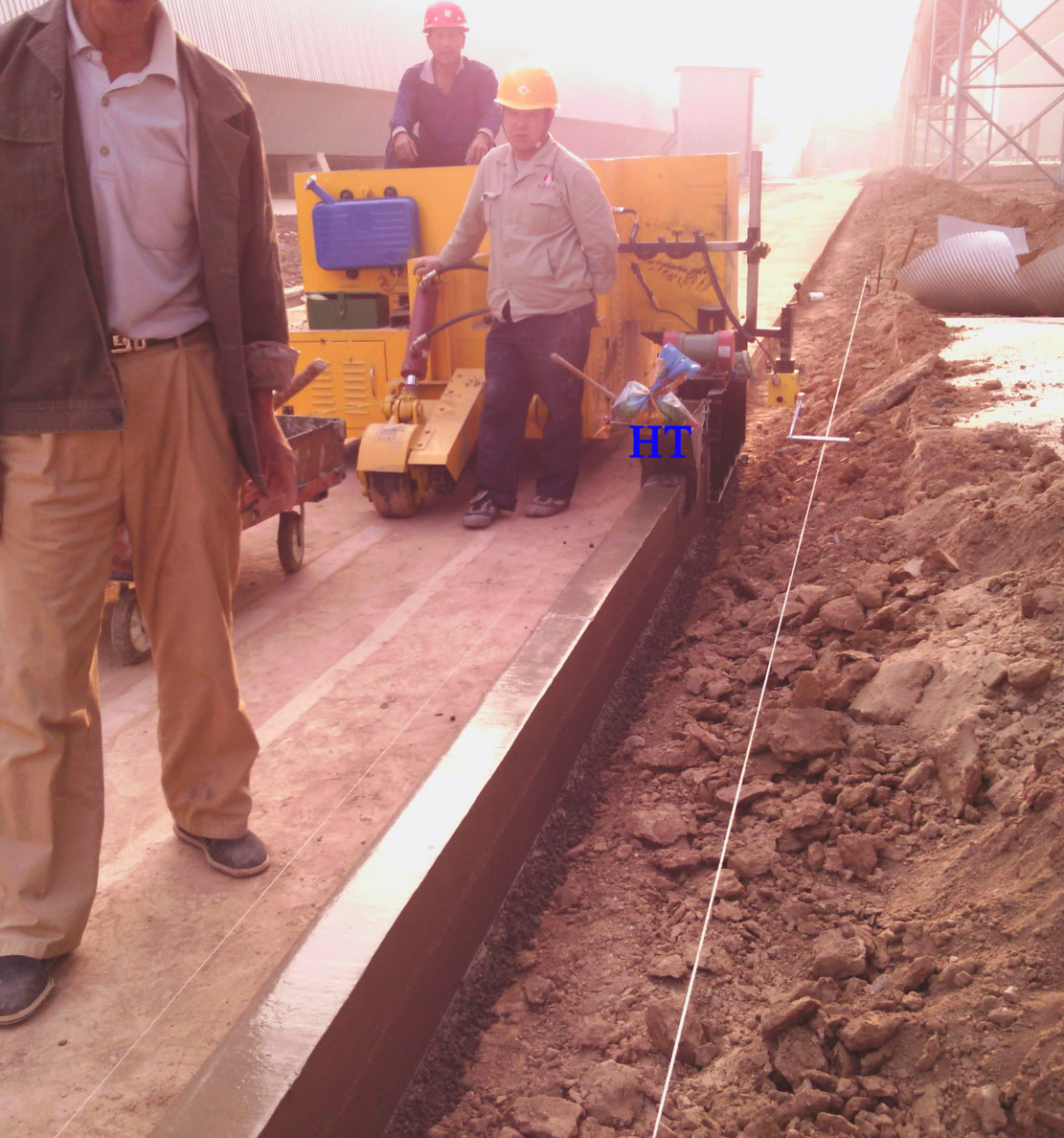

HT600 slipform kerb machine is the special equipment for cement concrete road-building curbs.
This kind of kerb slipformer machine can pave the curb range : Width≤750mm, Height≤460mm.
1 Automatic leveling, automatic steering , hydraulic height adjustment.
2 Continuously Variable Transmission

Technical Parameter Of Kerb Slipform Machine :

HT600

Specifactions

Features

Curb
Size Range

Width≤750mm,height≤460mm

Is widely applicable for curbs

Parameters
Of  engine set

Fuel

Gasolilne

4-strokes, forced air cooling
Noise level≤76.5 dBA
Environmentally friendly,low emissions

Power

7Kw

Start-up mode

Electric start

Rotation speed

3000 rpm

Radiating way

Air cooling

Auto leveling,auto steering, hydraulic height adjustment, continuously variable speed

Paving speed

1-6m/min

Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving



Slipform Kerb Machine

Kerb Slipform Machine

Contact us

  • Skype : andyvictoryy
  • Email : andy@htenma.com
  • Mobile(whatsapp, weichat) :
    0086 18638556116
  • Factory Address :
    Gebo Development Zone, Qinhuangdao City, Hebei, China
  • Office Address :
    1701, No. 27, Future International Bldg., Business Inner Ring East 3rd Rd, Zhengzhou City, Henan Province

Comparison Between Self-propulsion And Anti-push Type

All the models of our machine is Self-propulsion Type

1 Forming Intensity : anti-push type move forward by squeezing,low intensity.
Self-propulsion Type forms curb by high frequency vibration,
max exciting force 500kN

2 Working Speed : anti-push type squeezing one time and move forward one time,speed is low and can not be adjusted.

3 Embedded Curbs : anti-push type only can make curb on the road surface,can not pave the curb embedded down the road surface.

4 Curb Appearance : the mortar bucket of anti-push type is integrated with machine,easily blocked,
separated mortar bucket (self-propulsion type) can make the curb appearance more beautiful.

5 For Commercial Concrete (plastic concrete,fed by concrete truck directly),anti-push type is not suitable for this concrete.
