road curbing machine , road curb machine HT400 :

Working video in Youtube : http://youtu.be/o4wDt_oYkCw

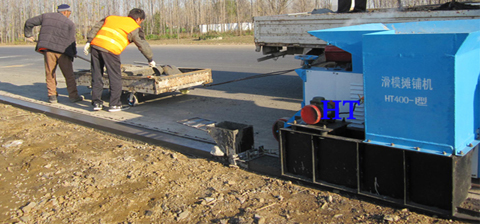

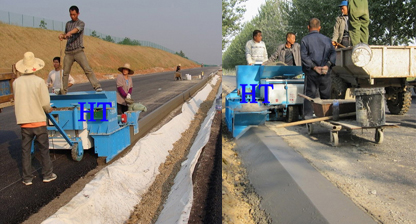

HT400 road curbing machine is widely used in highway and municipal road curb construction project.
The curb built by our road curb machine has smooth appearance, water reaining effect is good, easy to operate, high production efficiency.

Technical Parameter Of Road Curbing Machine :

HT400

Specifications

Features

Curb size range

Width≤600mm,height≤460mm

Is widely applicable for curbs

Parameters

Of engine set

Fuel

diesel

Single-cylinder water-cooled diesel engine, simple and reliable

Power

8kw

Output voltage

380v,3 phases

Start-up mode

Electric start

Radiating way

Water cooling

Paving speed

1-4m/min

Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving



road curb machine

road curbing machine

Contact us

  • Skype : andyvictoryy
  • Email : andy@htenma.com
  • Mobile(whatsapp, weichat) :
    0086 18638556116
  • Factory Address :
    Gebo Development Zone, Qinhuangdao City, Hebei, China
  • Office Address :
    1701, No. 27, Future International Bldg., Business Inner Ring East 3rd Rd, Zhengzhou City, Henan Province

Comparison Between Self-propulsion And Anti-push Type

All the models of our machine is Self-propulsion Type

1 Forming Intensity : anti-push type move forward by squeezing,low intensity.
Self-propulsion Type forms curb by high frequency vibration,
max exciting force 500kN

2 Working Speed : anti-push type squeezing one time and move forward one time,speed is low and can not be adjusted.

3 Embedded Curbs : anti-push type only can make curb on the road surface,can not pave the curb embedded down the road surface.

4 Curb Appearance : the mortar bucket of anti-push type is integrated with machine,easily blocked,
separated mortar bucket (self-propulsion type) can make the curb appearance more beautiful.

5 For Commercial Concrete (plastic concrete,fed by concrete truck directly),anti-push type is not suitable for this concrete.
