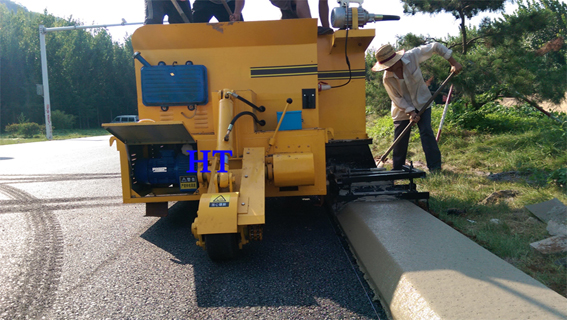

Concrete Curbing Machine , Road Machinery Concrere Curb Machine hT600 :

Working video in Youtube : https://youtu.be/qyiya1M73xE

HT600 concrete curbing machine is widely used in highway and municipal road curb construction project.
The curb built by our concrete curb machine has smooth appearance, water reaining effect is good, easy to operate, high production efficiency.

Technical Parameter Of Road Machinery Concrere Curb Machine :

HT600

Specifactions

Features

Curb
Size Range

Width≤750mm,height≤460mm

Is widely applicable for curbs

Parameters
Of  engine set

Fuel

Gasolilne

4-strokes, forced air cooling
Noise level≤76.5 dBA
Environmentally friendly,low emissions

Power

7Kw

Start-up mode

Electric start

Rotation speed

3000 rpm

Radiating way

Air cooling

Auto leveling,auto steering, hydraulic height adjustment, continuously variable speed

Paving speed

1-6m/min

Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving



Concrete Curbing Machine , Road Machinery Concrere Curb Machine

Road Machinery Concrere Curb Machine

Contact us

  • Skype : andyvictoryy
  • Email : andy@htenma.com
  • Mobile(whatsapp, weichat) :
    0086 18638556116
  • Factory Address :
    Gebo Development Zone, Qinhuangdao City, Hebei, China
  • Office Address :
    1701, No. 27, Future International Bldg., Business Inner Ring East 3rd Rd, Zhengzhou City, Henan Province

Comparison Between Self-propulsion And Anti-push Type

All the models of our machine is Self-propulsion Type

1 Forming Intensity : anti-push type move forward by squeezing,low intensity.
Self-propulsion Type forms curb by high frequency vibration,
max exciting force 500kN

2 Working Speed : anti-push type squeezing one time and move forward one time,speed is low and can not be adjusted.

3 Embedded Curbs : anti-push type only can make curb on the road surface,can not pave the curb embedded down the road surface.

4 Curb Appearance : the mortar bucket of anti-push type is integrated with machine,easily blocked,
separated mortar bucket (self-propulsion type) can make the curb appearance more beautiful.

5 For Commercial Concrete (plastic concrete,fed by concrete truck directly),anti-push type is not suitable for this concrete.
