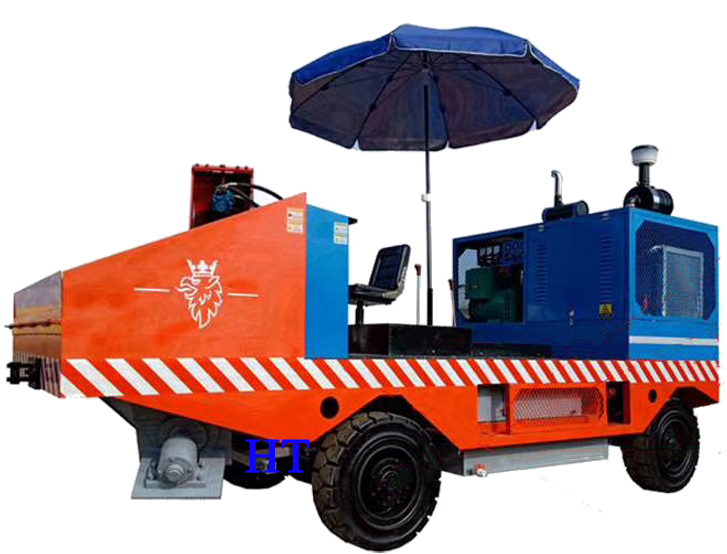

HT2000 Concrete Landscape Edging Machine For Sale , Concrete Border Machine:

Working video in Youtube : https://youtu.be/vf62kRoUNAI

HT2000 concrete landscape edging machine is the special equipment for cement concrete road-building curbs.
This kind of concrete border machine can pave the curb range :
Width≤2000mm, Height≤600mm, besides paving big curbs, it also can pave small narrow road.
1 Automatic leveling, automatic steering , remote control.
2 Self-Balancing,adapt to the more complex working conditions.
3 All time 4 wheels drive, off-road tires, can run on all kinds of road.
4 Strong power,can drive the concrete material truck under the slope <5%.

Technical Parameter :

HT2000

Specifactions

Features

Curb Size Range

Width≤2000mm,height≤600mm

Suitable for big kerbs

Parameters
Of Engine

Fuel

Diesel

Inline four-cylinder naturally aspirated

Power

60kw

Start-up Mode

Electric Start

Rotation Speed

2000 Rpm

Radiating Way

Water Cooling

Digital Leveling System

Leveling Scope:±40mm

Automatic temperature adaptation
Voltage overload protection

Paving Speed

1-16m/Min

Imported CVT
(continuously variable transmission)
Adjust machine to the most suitable state
Electromagnetic speed controllerfour speed gearbox
Ensure stepless adjustment of paving

Hopper Capacity

1.2 m³

Bigger volume, reduce the number of shutdowns caused by insufficient feeding

Concrete Border Machine



Concrete Landscape Edging Machine

Contact us

  • Skype : andyvictoryy
  • Email : andy@htenma.com
  • Mobile(whatsapp, weichat) :
    0086 18638556116
  • Factory Address :
    Gebo Development Zone, Qinhuangdao City, Hebei, China
  • Office Address :
    1701, No. 27, Future International Bldg., Business Inner Ring East 3rd Rd, Zhengzhou City, Henan Province

Comparison Between Self-propulsion And Anti-push Type

All the models of our machine is Self-propulsion Type

1 Forming Intensity : anti-push type move forward by squeezing,low intensity.
Self-propulsion Type forms curb by high frequency vibration,
max exciting force 500kN

2 Working Speed : anti-push type squeezing one time and move forward one time,speed is low and can not be adjusted.

3 Embedded Curbs : anti-push type only can make curb on the road surface,can not pave the curb embedded down the road surface.

4 Curb Appearance : the mortar bucket of anti-push type is integrated with machine,easily blocked,
separated mortar bucket (self-propulsion type) can make the curb appearance more beautiful.

5 For Commercial Concrete (plastic concrete,fed by concrete truck directly),anti-push type is not suitable for this concrete.
