HT800 Concrere Kerb Laying , Making Machine :

Working video in Youtube : https://youtu.be/No5IHaRuGQg

HT800 concrete kerb making machine is the special machine to construct road curb, with slipforming construction method, with fast construction speed, high degree of mechanization, widely used in highway and municipal road curb construction project.
Our concrete kerb laying machine can save time, labor, material and can improve work efficiency.

Technical Parameter Of Concrete Kerb Making Machine:

HT800

Specifactions

Features

Curb Size Range

Width≤1200mm,height≤600mm

Is widely applicable for curbs

Parameters
Of Engine

Fuel

Diesel

Electronic speed control, voltage stability, light weight, small vibration, low noise, long life.
High reliability and strong ability to adapt to the temperature.

Power

25kw

Start-up Mode

Electric Start

Rotation Speed

2600 Rpm

Radiating Way

Water Cooling

Digital Leveling System

Leveling Scope:±40mm

Automatic temperature adaptation
Voltage overload protection

Paving Speed

1-7m/Min

Imported CVT
(continuously variable transmission)
Adjust machine to the most suitable state

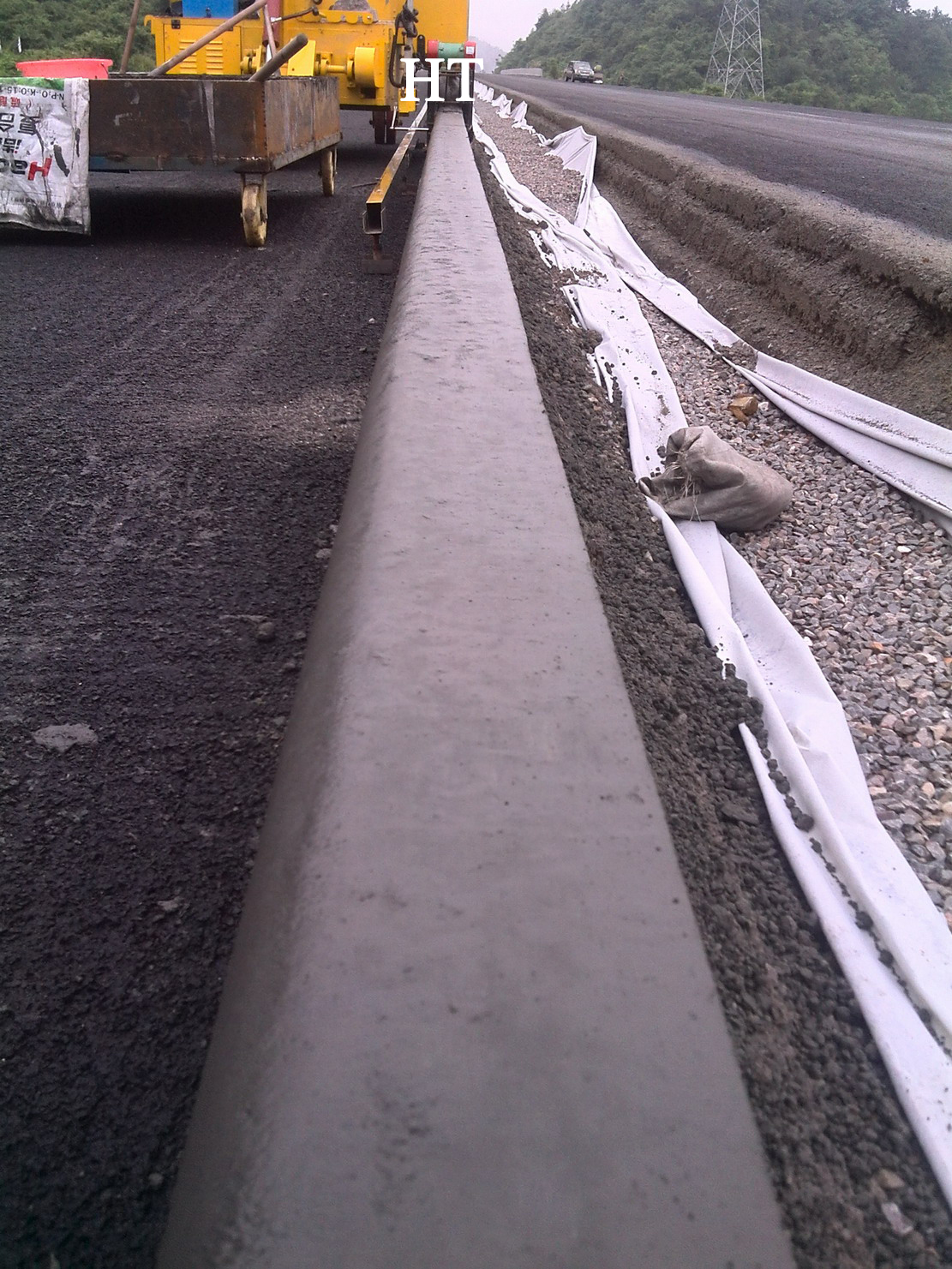

Concrere Kerb Laying Machine

Concrere Kerb Making Machine

Contact us

  • Skype : andyvictoryy
  • Email : andy@htenma.com
  • Mobile(whatsapp, weichat) :
    0086 18638556116
  • Factory Address :
    Gebo Development Zone, Qinhuangdao City, Hebei, China
  • Office Address :
    1701, No. 27, Future International Bldg., Business Inner Ring East 3rd Rd, Zhengzhou City, Henan Province

Comparison Between Self-propulsion And Anti-push Type

All the models of our machine is Self-propulsion Type

1 Forming Intensity : anti-push type move forward by squeezing,low intensity.
Self-propulsion Type forms curb by high frequency vibration,
max exciting force 500kN

2 Working Speed : anti-push type squeezing one time and move forward one time,speed is low and can not be adjusted.

3 Embedded Curbs : anti-push type only can make curb on the road surface,can not pave the curb embedded down the road surface.

4 Curb Appearance : the mortar bucket of anti-push type is integrated with machine,easily blocked,
separated mortar bucket (self-propulsion type) can make the curb appearance more beautiful.

5 For Commercial Concrete (plastic concrete,fed by concrete truck directly),anti-push type is not suitable for this concrete.
