Asphalt Kerb Machine , Asphalt Kerbing Machine :

Working video for small asphalt curb in Youtube : http://youtu.be/vIpEBjyOl3c

Working video for small concrete curb in Youtube : https://youtu.be/pKojAPpoI4Y

Besides asphalt material, our Asphalt Kerbing Machine also can use cement concrete to build concrete curbs, it is suitable for small curbs construction.
The finished curb is linear and smooth, has beautiful appearance, the operation is simple, machine price is cheap, is an ideal machine for small curb construction.

Technical Parameter Of Asphalt Kerb Machine :

LCX

Specifactions

Features

Weight

550Kg

Dimension

1470mm x 740mm x 1070mm

Compact, easy to move

Parameters
Of Engine

Fuel

Diesel

Single-cylinder water-cooled diesel engine, simple and reliable

Power

15Hp

Start-up Mode

Electric Start

Radiating way

Water cooling

Paving Speed

1.5-3m/min

Speed is related to curb size

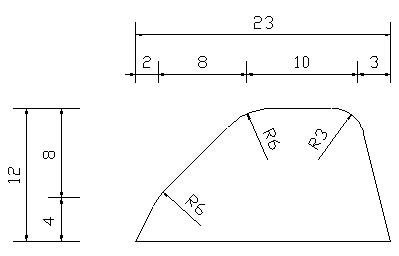

asphalt curb draw

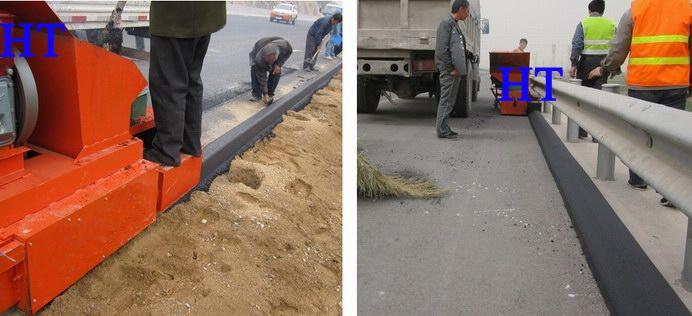

Asphalt Kerbing Machine

Contact us

  • Skype : andyvictoryy
  • Email : andy@htenma.com
  • Mobile(whatsapp, weichat) :
    0086 18638556116
  • Factory Address :
    Gebo Development Zone, Qinhuangdao City, Hebei, China
  • Office Address :
    1701, No. 27, Future International Bldg., Business Inner Ring East 3rd Rd, Zhengzhou City, Henan Province

Comparison Between Self-propulsion And Anti-push Type

All the models of our machine is Self-propulsion Type

1 Forming Intensity : anti-push type move forward by squeezing,low intensity.
Self-propulsion Type forms curb by high frequency vibration,
max exciting force 500kN

2 Working Speed : anti-push type squeezing one time and move forward one time,speed is low and can not be adjusted.

3 Embedded Curbs : anti-push type only can make curb on the road surface,can not pave the curb embedded down the road surface.

4 Curb Appearance : the mortar bucket of anti-push type is integrated with machine,easily blocked,
separated mortar bucket (self-propulsion type) can make the curb appearance more beautiful.

5 For Commercial Concrete (plastic concrete,fed by concrete truck directly),anti-push type is not suitable for this concrete.
